OSO MOUNTAIN DESIGN
Rugged Edge AI for RF Superiority

Mission-ready RF Intelligence.
At the edge.

COYOTE™ is a compact, ruggedized RF sensing and spectrum operations platform — built around state of the art COTS AI processors and proven flexible software defined radios, engineered to survive wherever the mission takes you.

Request Information Explore COYOTE
Mass
1.1 kg
Footprint
7 × 3.75 × 1.7"
Ingress
IP67
Compute
Orin NX

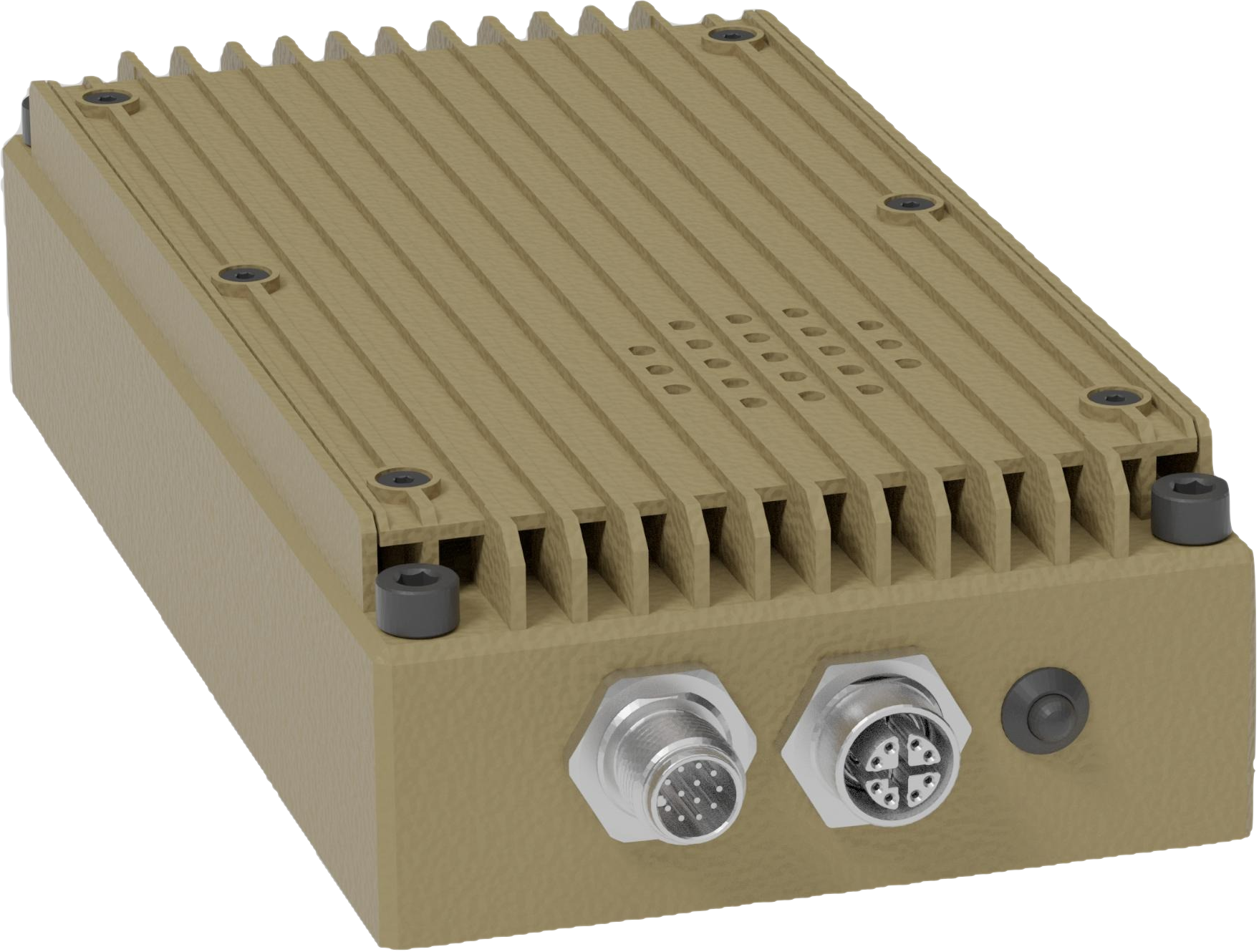

COYOTE rugged RF edge processing platform — a compact, coyote-tan ruggedized enclosure with heat-sink fins and sealed M12 connectors.
Key Capabilities

Unmatched capability, from spectrum to decision.

COYOTE fuses next-gen edge compute with an advanced software defined radio in one rugged package enabling broadband wireless sensing, electronic warfare, EMSO, and RF superiority across any domain.

01

Advanced Edge AI Processing

Real-time signal analysis, classification, and decision support at the tactical edge - powered by the AI-enabled NVIDIA Jetson Orin NX.

02

Flexible Software Defined Radio

Proven, industry-standard and rapidly integrated SDR supporting a wide range of waveforms, bands, and mission profiles.

03

Next-Generation RFML Ready

Fully compatible with DeepSig's OmniSIG™ Sensor Suite for state-of-the-art RF machine learning.

04

Unattended & Autonomous

Engineered for persistent sensing and remote deployment, providing maximal spectral reach and rapid scalability.

05

Proven COTS Core

Reliable, industry-proven components packaged in the rugged form factor your mission demands.

06

Relentlessly Rugged

Designed to operate everywhere you Operate, because the mission demands performance.

The Platform

COYOTE™ — one sealed box, full-spectrum edge.

Built around an advanced edge-AI processor and a highly flexible, industry-proven software defined radio, COYOTE delivers unmatched capability for wireless sensing, electronic warfare, EMSO, and RF superiority. Optimized for unattended operations, unmanned systems, and volume deployment, it packs a state-of-the-art COTS core into a low-SWaP-C package for modern RF operations across the full battlespace.

Rugged. Compact. Deployable at scale.

  • Extremely rugged — built for the harshest environments
  • Engineered for low-cost, high-volume deployment
  • Air-over-conduction cooling for the latest NVIDIA Jetson Orin NX, including 40 W Super mode
  • Single-supply 7–18 VDC, or single-cable install via 802.3bt (PoE+)
  • SDR options: Epiq NV100 or Ettus USRP B206mini-i
  • USB host port for expansion — Cellular / IoT C2 and more
  • Pole-mountable with brackets · standard 1U height

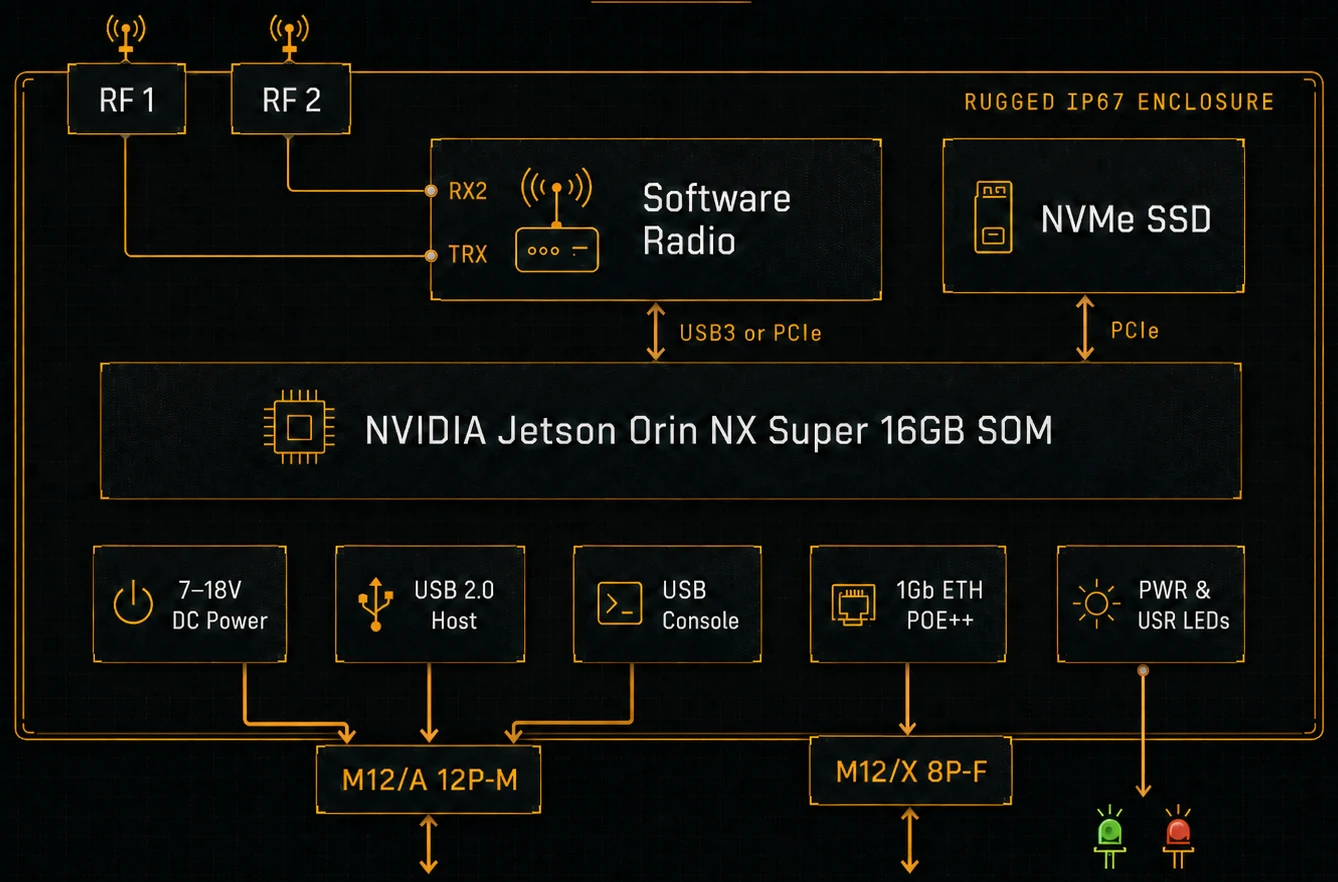

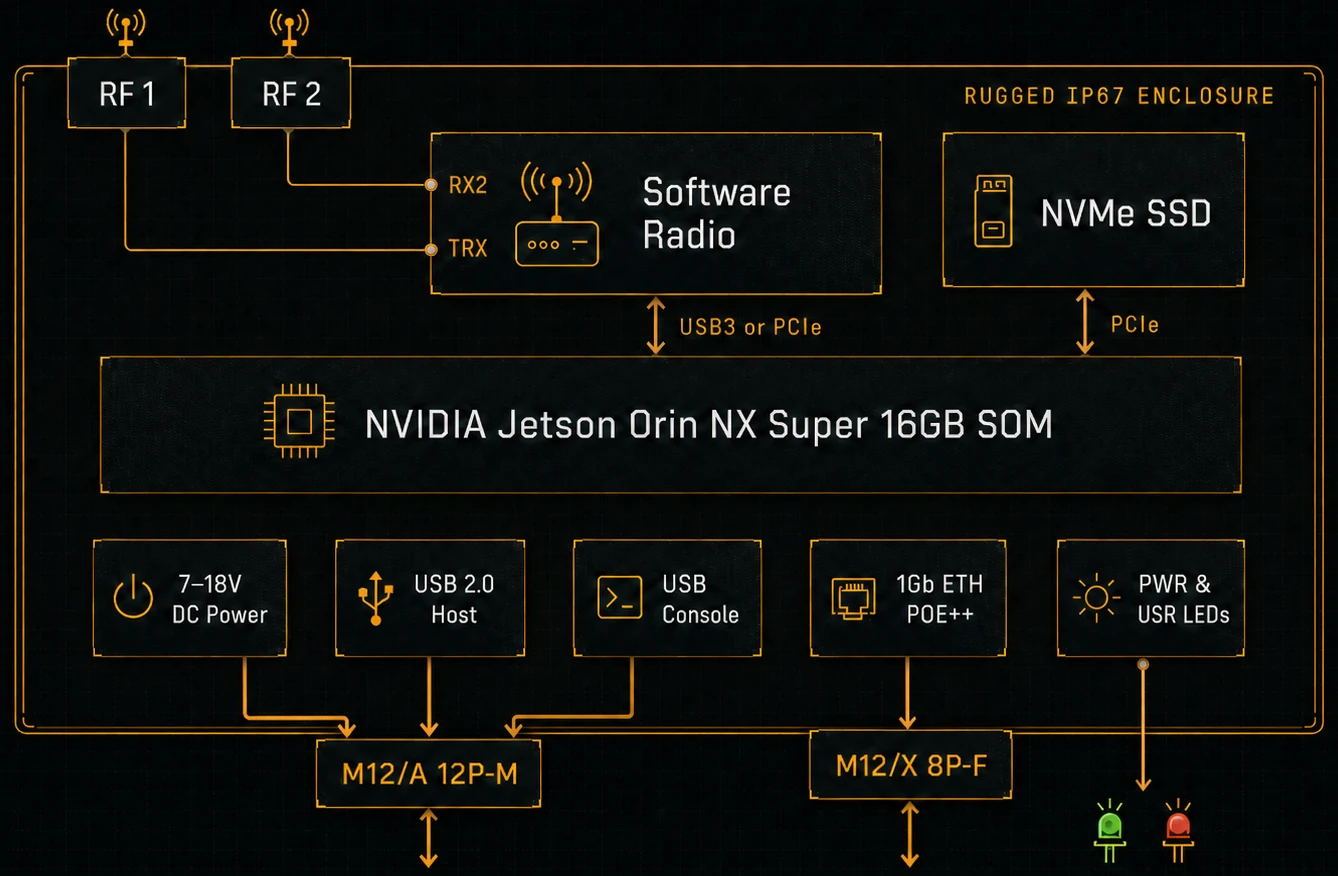

COYOTE block diagram: dual RF inputs (RF1, RF2) feeding a software radio and NVMe SSD, an NVIDIA Jetson Orin NX Super 16GB SOM, with 7–18 V DC power, USB 2.0 host, USB console, and 1Gb Ethernet with PoE++ — all inside a rugged IP67 enclosure with M12/A and M12/X connectors.
Fig. 01 — COYOTE system architecture · Rugged IP67 enclosure
The Hardware

Real hardware, ready to deploy.

COYOTE is machined, sealed, and shipping now — engineered aluminum built to take a beating and keep sensing, from the bench to the far edge.

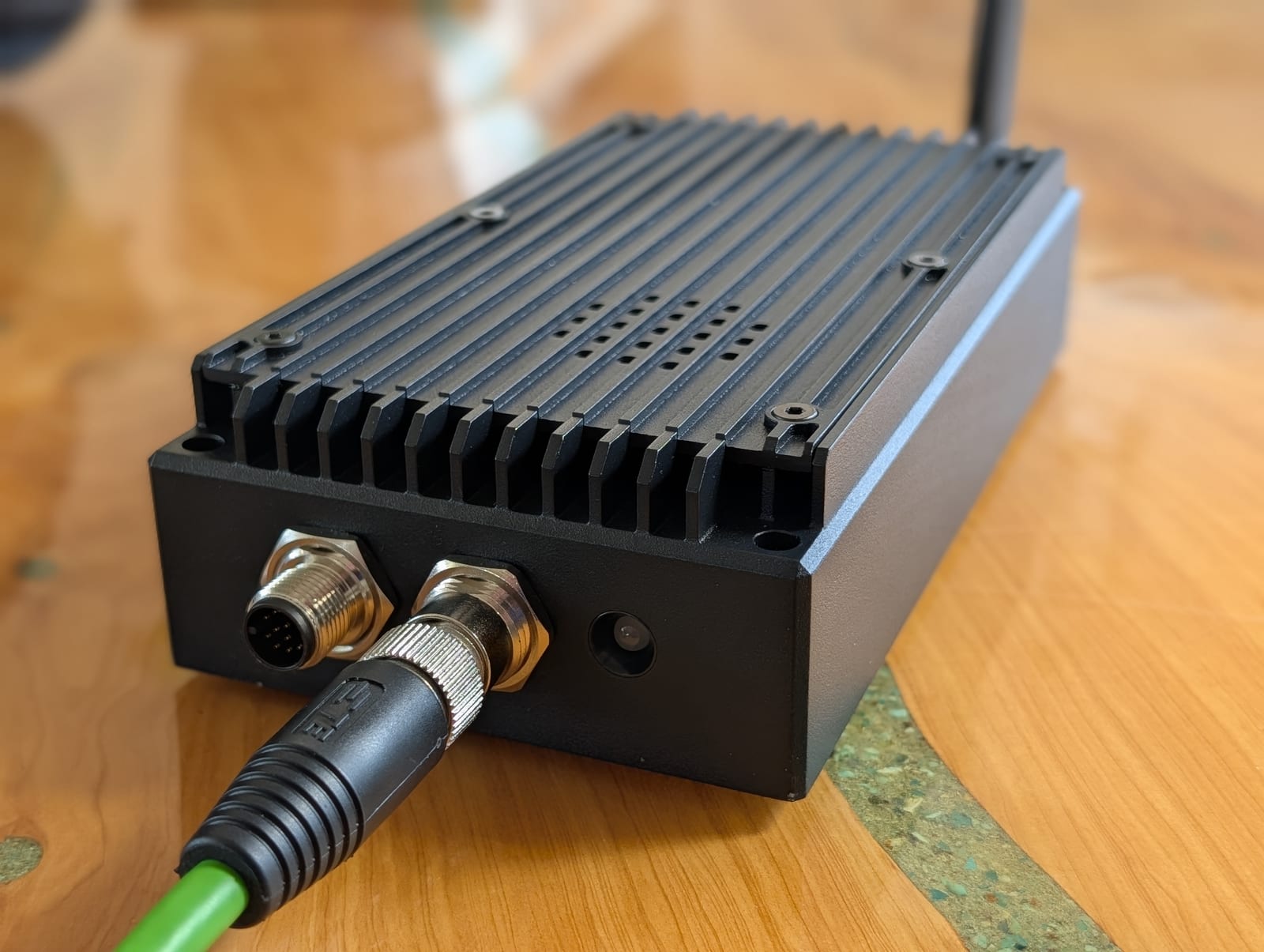

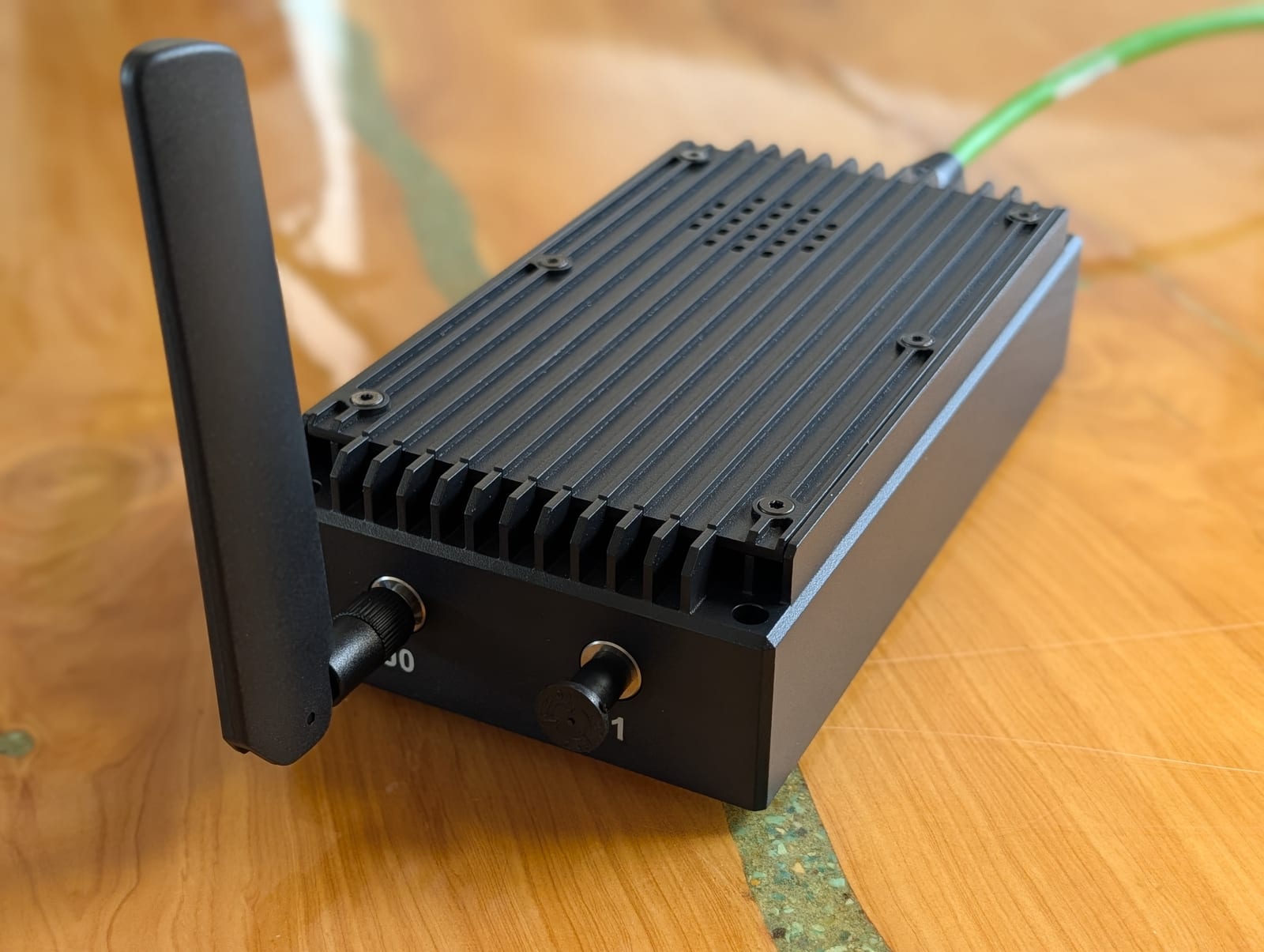

Front three-quarter view of the COYOTE unit: a black anodized ruggedized enclosure with machined heat-sink fins, sealed M12 connectors with an Ethernet cable attached, and a whip antenna.
Sealed M12 I/O — single-cable PoE+ power and data
Specifications

Low SWaP-C, by design.

Size, weight, power, and cost — engineered down without compromising capability, so COYOTE deploys where larger systems can't.

2.45 lb
Total weight
40 W
Orin NX Super mode
IP67
Sealed enclosure
USA
Designed & assembled
Compute
NVIDIA Jetson Orin NX Super · 16 GB
Software radio
Epiq NV100 or Ettus USRP B206mini-i · 2× RF
Storage
NVMe SSD (PCIe)
Weight
2.45 lb (1.11 kg)
Dimensions
7 × 3.75 × 1.7 in
Enclosure
Rugged, sealed — IP67
Cooling
Air-over-conduction · 40 W Super mode
Input power
7–18 VDC, or 802.3bt PoE+
Network
1 GbE with PoE+
Expansion
USB host (Cellular / IoT C2), USB debug
Connectors
M12-M 12P A-code · M12-F 8P X-code
Mounting
Pole brackets · standard 1U height
Built for Software Defined Deployments

Deploy across the full battlespace.

From manned platforms to attritable nodes, COYOTE was designed for the mission profiles modern RF operations demand.

Wireless sensing & spectrum monitoring

Persistent situational awareness of the electromagnetic environment.

Electronic warfare & non-kinetic effects

Detect, characterize, and act on threats at the tactical edge.

Unmanned systems

SWaP-C optimized for UAV, UGV, and USV integration and payloads.

State-of-the-art RFML

Run modern RF machine-learning tools like OmniSIG™ on-platform.

Attritable sensing

Low enough cost to deploy and forget across distributed nodes.

The Company

Designed & assembled in the USA.

Oso Mountain Design is founded and staffed by pioneers in software defined radio, electromagnetic spectrum operations, and innovative system design. We focus on delivering mission-focused RF and edge-compute solutions for defense, government, and advanced industrial applications.

COYOTE reflects our commitment to rugged engineering, operational flexibility, and rapid field deployment.

Designed and Assembled entirely in the USA.
  • 01

    SDR & EMSO pioneers

    Founded and staffed by veterans of software defined radio and electromagnetic spectrum operations.

  • 02

    Rugged engineering

    Hardware built to survive the field — sealed, thermally sound, and volume-manufacturable.

  • 03

    Rapid field deployment

    Mission-focused designs that get real capability into operators' hands, fast.

Built on proven, industry-standard technology
  • NVIDIA Jetson Orin NX
  • Epiq Solutions NV100
  • Ettus USRP B206mini-i
  • DeepSig OmniSIG™
Get in Touch

Bring RF superiority to your mission.

COYOTE is available to order now. Reach out to discuss requirements, integration, and volume deployment — we'll respond personally.
